Reverse Osmosis System
The RO filtration system is a water filtration system that uses reverse osmosis membrane technology or RO, which can remove up to 99% of dissolved impurities. Ensure that toxic substances such as arsenic, iron, lead, manganese, sediment, organic substances, and salinity in the water are completely treated.

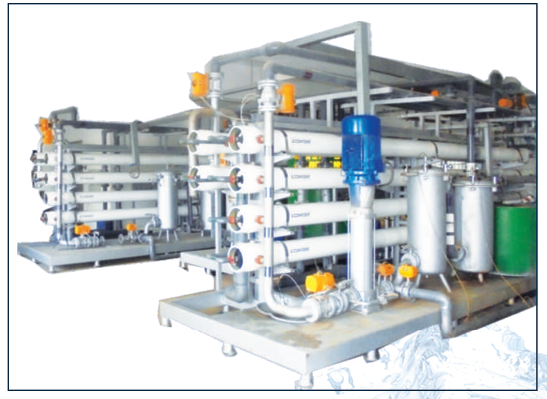

An industrial RO filtration system is made up of 3 parts: pretreatment ( normally by Ultrafiltration), RO filtration, and RO filtration posttreatment (depending on water quality requirements).
Treated water from the Ultra filtration will be fed to RO I feed tank. From RO I feed tank the treated water came to the serious of micron filters then fed to reverse osmosis membranes stage I by applying by high pressure by HP pump meantime pH correction chlorine removal from anti- oxidant and anti - scalant dosing done automatically. Overall 75 per of water recovers from RO stage I. All the RO system will have fully automated like service, ORP control, pH control, low pressure & high pressure dripping, automatic flushing, differential pressure monitoring, automatic cleaning, flushing etc . The product from the RO all stages permeate will feed to degasification tower for removal of carbon-dioxide and odour. After degasification the product water fed to the production plant for use (supply water) or reuse (waste water).
Confident's RO design solutions provide you with Solutions from wastewater treatment plants to reuse plants, clean water treatment plants or saline water treatment. The products, systems and techniques offered are suitable for every application.
- 98 per of the Feed water is recovered in the RO system.
- The system is installed with Automation for Pressure, pH, ORP and Flushing and monitoring the Flaw, pH andTDS in Feed, Permeate and Reject.
- On Line Dosing of Anti-Scalant, Anti Oxidant and Acid.
- De-Gassifier Tower is used to remove the Alkalinity and Bi-Carbonates in the Permeate Water before Re-Use.
- Permeate water TDS is less than 100 mg per Lt, Hardness Nil, pH 6-6.5.
- Renewable Water source to save the environment.
PANATECH is the exclusive distributor of CONFIDENT ENGINEERING in Vietnam, Laos, Cambodia and Austraulia.
Contact PANATECH now to get consultation and find the best solution for you!
